other workstations and related items
Terminals and X-terminals
Some of these have been moved to our DEC and other equipment page.
Texas Micro or Radisys single card Pentium board. Texas Micro P54C 946 F23463C, may also be Radisys EPC-2102 SBC. Single card PCI/ISA board with ultraSCSI controller, four 72-pin SIMMS, Socket 7 Pentium 133MHz processor, ISA and floppy, serial and parallel ports. Also have passive motherboard with ISA and PCI slots. Disassembled after running OK. Modest price for these two cards, ask. Radisys Web site has online manual for their model.
Things related to the Z80, 8080 processors
Here's some Z80 and other single-board computers I've found, restored, or otherwise accumulated.

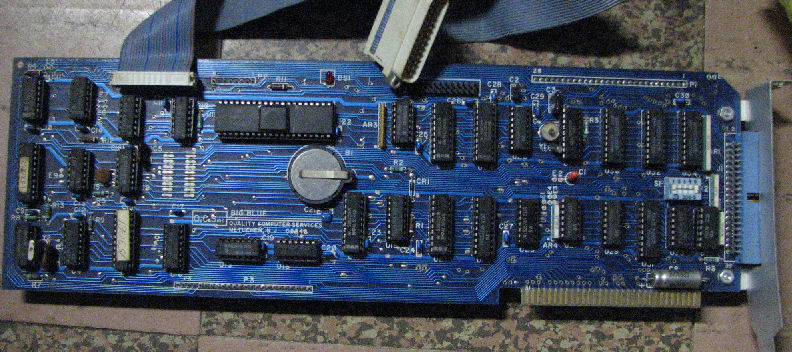

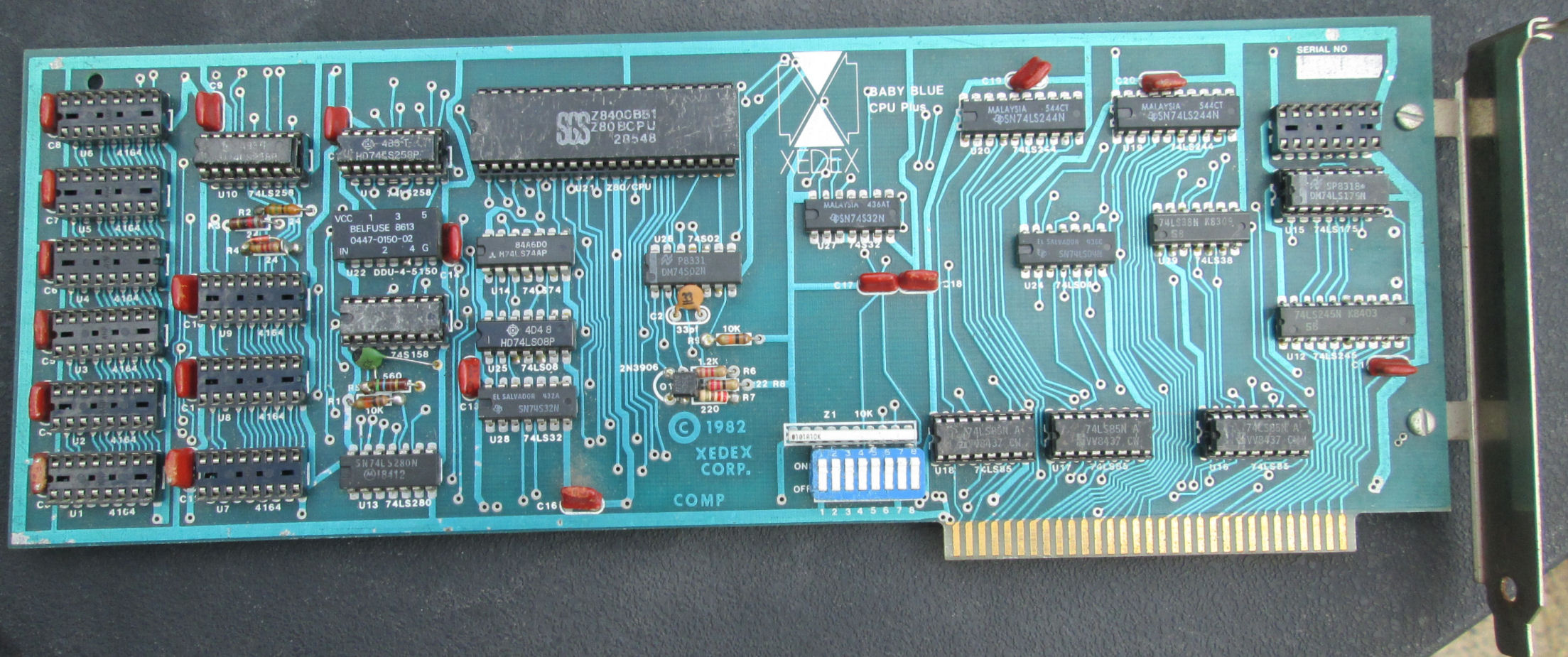

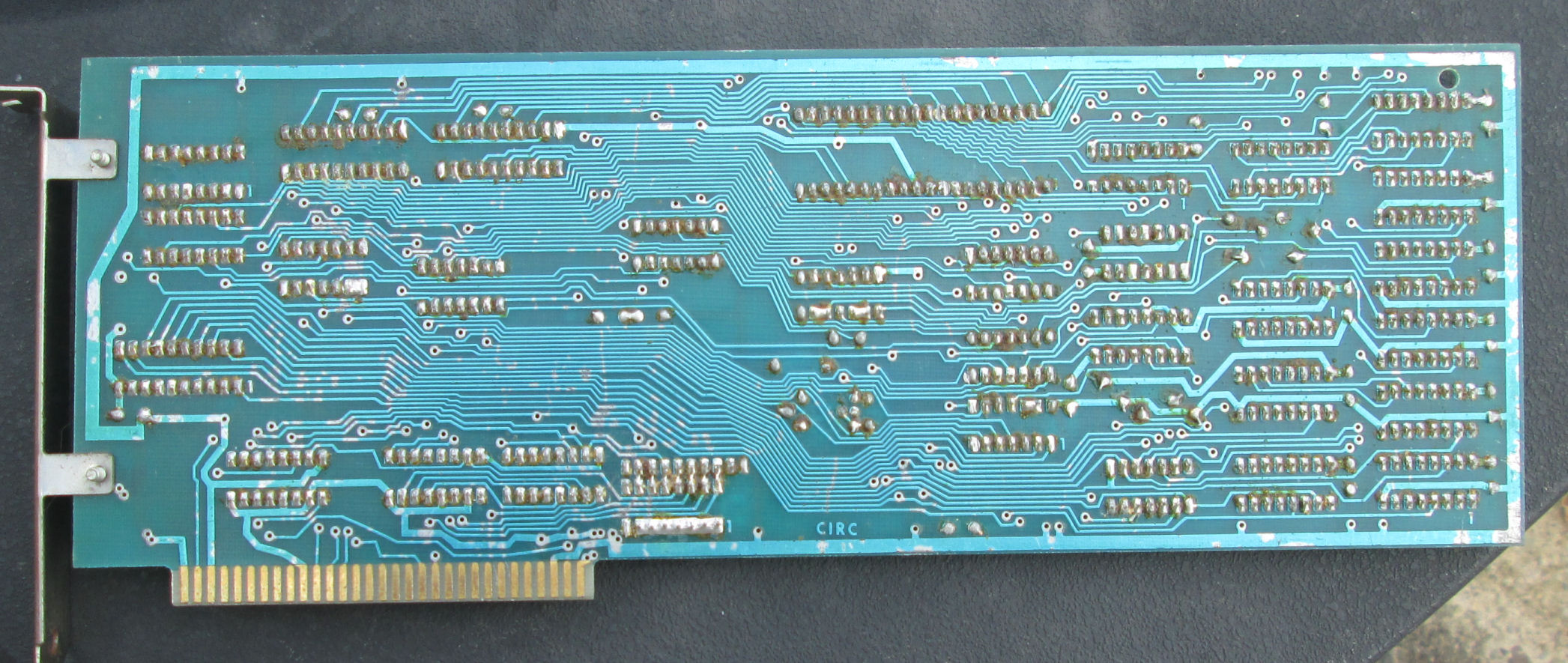

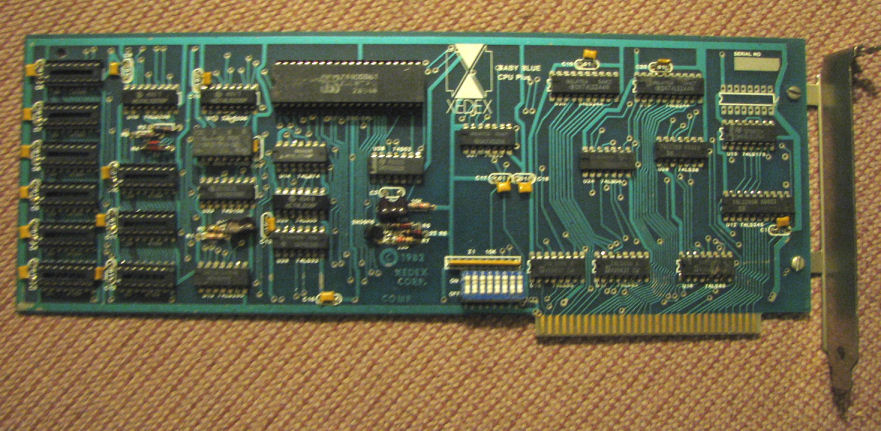

Baby Blue Z80 card for IBM PC
I have two sets of Baby Blue Z80 card docs and disks.
First set from Microlog: The Baby Blue files I have total about 100K. They appear to be from 1983 and include references to Version 2 and version 1. The lable on my copied disk says "Ver 2.04K". I'd charge $2 plus shipping for this disks if you buy this with the manuals. The document is a copy of the Microlog Baby Blue CPU Plus User's Manual, from 1983. Copied as two half-sized pages per sheet, there are 48 sheets. There is also a manual for BSTAM which is some kind of communications program, of 9 sheets. We'd charge $12 to copy this pair of manuals.
second set from Xedex: I also have an original Baby Blue document, as above but from Xedex Corp and labled Version 1.2. It's a different manual with illustrations of a Baby Blue Xedex card, with a Z80 near the top edge, a DIP switch near but not above the edge connector, and with 9 RAM chips on the vertical edge farthest from the ISA connector (arranged as 6 + 3 chips). this manual is 56 half sized pages so we'd charge for it as 28 sheets copied two pages per sheet. So this would cost $6 for a copy. It refers to similar programs as the Microlog manual. There are two 5.25 inch disks with this "original" manual. I'd charge $2 for a copy of these onto a 3.5" diskette, presuming I can read those disks.
Jack Rubin looked at my docs and said this; "> I finally got my Microlog card working - it only runs in an IBM 5150; it might work with a 5160 but the card slots are too close together physically to allow the board to seat correctly.... The Microlog manual, though less "slick" is newer and more complete. The most significant difference I noted was that the Xedex manual wants switch 8 ON (enable parity checking for onboard RAM) and Microlog wants it OFF. It's very hard to tell from the copy I have (maybe your original is a little better) but the Xedex board _seems_ to have parity RAM installed while my Microlog not only lacks the parity RAM chip but doesn't even have the socket installed. Needless to say, I turned the switch off and the board worked fine. "
As of Aug 2009 I have SIX Baby Blue Xedex cards, untested, sold AS IS. Cards as pictured, or one with a pale blue circuit board but identical layout and chipset. DRAM chips removed on all of them. All TTL type logic chips (type is labled on each board) except one delay line chip. Some have some socketed chips. Cosmetically, they look OK. Ask me about a price on these. In addition, I have ONE card which is an enhanced Baby Blue called "Big Blue" from QuCoSinc or Quality Computer Services Inc of NJ. The back has a daughter card.

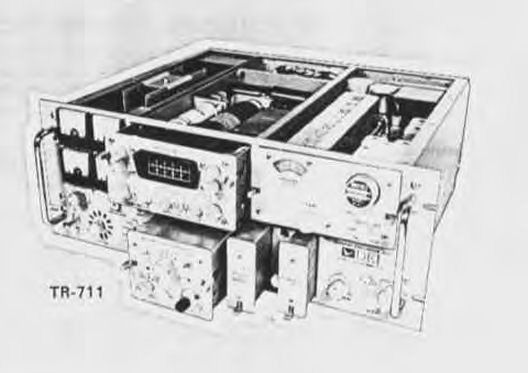

DEI TR-711 50-200MHZ AM/FM defense receiver
(Defense Electronics Inc) DEI model TR-711 receiver. Weighs about 50 lbs, rack-mountable. It has some nice features like bandwidth controls, and 2 switchable plug in IF filters, AM and FM demodulators, triple conversion, My unit has a front end for 50-200MHz, and so can receive commercial FM and aircraft. Here's the specific plug ins I have.
No display plug in (same size as RF tuner) A DEI catalog is
at this link. Here's a GENERAL description of what DEI offered with the TR-711, from a several page product description I have: I have two boxes of 8mm tape data cartridges, new, sealed, as follows: Dual 8mm tape drive, SCSI, in external box two Exabyte 8500 drives
in external case with SCSI-2 connectors. Initial tests are that one drive
accepts 8MM tapes, the other will reject the same tapes. Cannot test further
until SCSI address set to allow use of "good" drive. Looking for offers
before I test further.
4mm DAT tape drive, SCSI, in external box. Drive identifies
as "Archive Python 01931-xxx 5.56", and has a lable "Conner CTD8000E-S".
Has SCSI-1 connectors. Specs say 400Kbytes per second transfer, and 4GB
uncompressed storage on DDS-2 120m tape. Drive tested using Win 95 Backup,
saved and verified 1.5GB on tape. Make me an offer on this tested drive,
with a few tapes included.
Archive EAX6GP-60EP/150EP tape drive. Uses cartridge tapes.
Not tested.
IBM 7208-001 8mm tape drive, EXABYTE 8200. external SCSI tape drive
with AC supply. Original connectors on back replaced with SCSI-2 type
HD50 connectors and cable and terminator. Not working. Castlewood ORB 2.2Gb, orb2se00, scsi tape drives external, 2 units
Syquest EZdrive 135, 135Mb cartridge not included. SCSI external drive, untested.
DC2000 data carts, 40 MB, from 3M: 9 cartridges still sealed, in two boxes.
DC6150 cartridge tapes, unused, sealed. 13 tapes.
6" by 4" data cartridges, 1020 foot length, 250MB. 10 cartridges total
9 still sealed, in two boxes. No brand name, dated probably 1992.
We acquired these in March 2003. They were apparently purchased in 1975, according
to the original boxes they were shipped in from the manufacturer. Almost all are in
original packing in original boxes and those in original shipping box from manufacturer.
These product are currently available from Ferraz Shawmut, A Web search on that name
and the product name (A70p100 or A50p100) will find docs, tech notes, even an application to
select among their products. These are almost certainly made of silver ribbon in a sand matrix.
Designed to blow quickly at very high currents to protect semiconductors. Contact me to make offer.
quantity about 250: Shawmut Amp-trap A70P100 type 4 semiconductor fuses. Packed in
boxes of ten. fast acting fuse, 100 amp, up to 700 volts. Fiberglass package is about 1.5" diameter,
4 3/8 inches end to end. Studs (ferrule) at either end 1" wide, 3/4" long, with 5/16" dia hole.
Center to center on holes is 3 5/8". No guarantees on these measurements but they
are pretty close.
quantity about 140: Shawmut Amp-trap A50P100 type 4 semiconductor fuses. Packed in
boxes of ten. fast acting fuse, 100 amp, up to 500 volts. Fiberglass package is about 1.0" diameter,
3 5/8 inches end to end. Studs (ferrule) at either end 3/4" wide, 3/4" long, with 5/16" dia hole.
Center to center on holes is 2 7/8". No guarantees on these measurements but they
are pretty close.
I obtained two cabinets from the 1970's, from which I removed a few dozen 44-pin connectors
on two racks. I'd like to reuse these, but I need to identify the connectors and the insertable
pins they use. AccuTouch E271-2210 SmartSet Serial Controller. Small boards to control 5-wire resistive touchscreen
via serial (RS-232) interface. SOme simple specs in this document, check Accutouch Web site for more info.
A discontinued product but they have info as of 2009. I've got about a dozen of these cards, may be unused, I got them in
antistatic baggies. NO touchscreens available, just these controllers.
UNUSED multi-pin connectors , bulk wire (including fiber optics cable), from a recent purchase
are on this linked Web page.
Obtained May 2006. Several spools of bulk multiconductor wire, clean and in good condition, on
original wooden spools. Selling only as spools, not by the foot! NOte weights and lengths.
"Small spool" and "larger spool" are relative sizes for comparison. Looking for offers. Lengths may be short
a few feet from sampling, but no guarantees as to actual lengths. Pictures can be taken to respond to
serious offers. Easy enough to tag a spool and ship it! (some has been sold, we can confirm what is left.) In early
2009 local spot price for scrap bulk wire is 15 cents a pound, $15 per hundred pounds.
6 conductor, 24 gauge w/PVC insulation. Foil & braided shield with drain wire, 24 gauge. Beldin brand,
labled AWM 2919. Weight of spool about 30 lbs, spool says "527 feet" out of original 1000 feet. small spool.
UNUSED bulk wire and flat cable are available rom a recent purchase see this linked Web page.

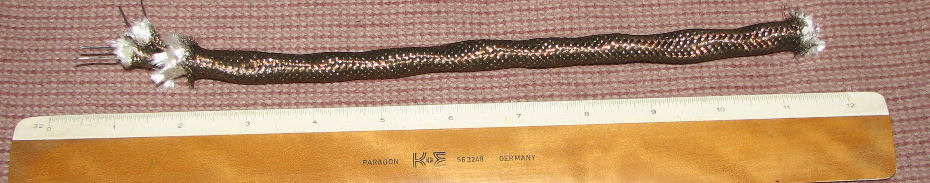

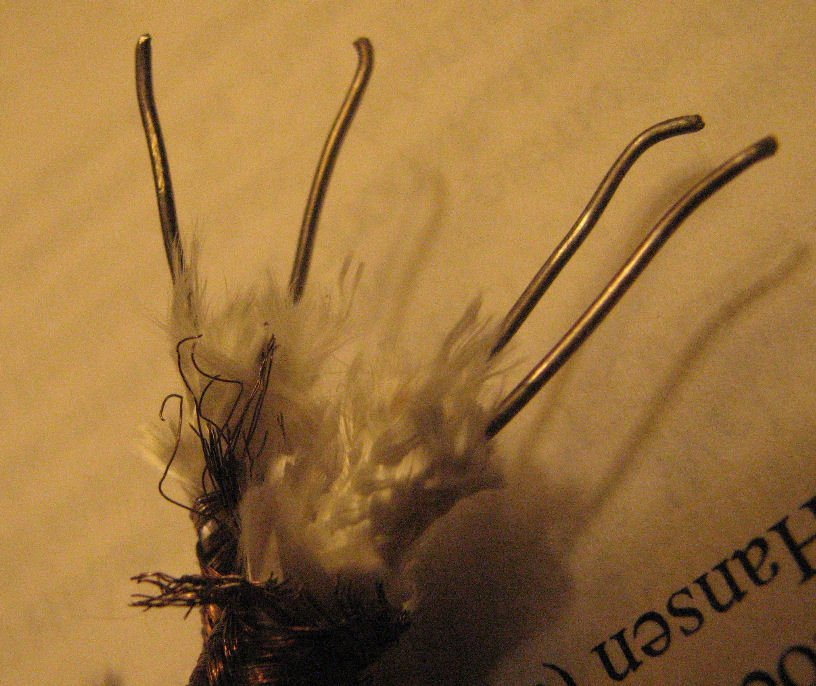

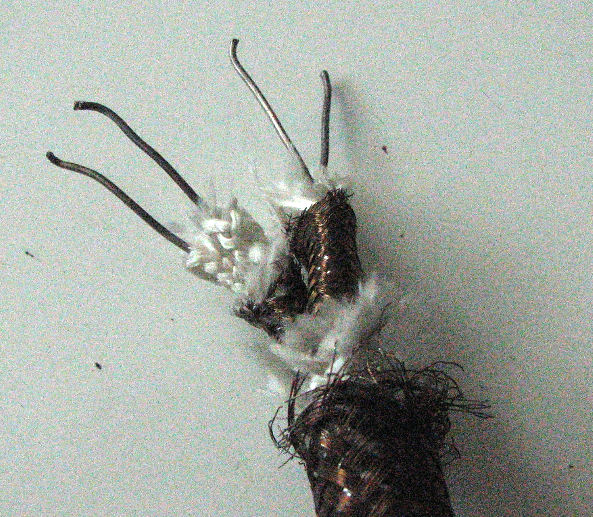

1400 feet of two-pair, high temperature, overbraided "thermocouple extension wire", in original steel barrel. Consists of an outer overbraid 0.4" diameter .03" thick, copper or bronze coated/colored metal. Inside is fiberglass-like braided layer and silica-like filling and a pair of inner braided .25" diameter .02" thick as above. Inside each of those are a pair of .032" (#20) diameter bare wires, grey metal.
Of each pair, one wire has slightly more "shine" than the other. I'll be glad to provide a sample of several inches for anyone serious.
A metallurgical service company did me a favor, and in April 2010 did a energy-dispersive spectroscopy (EDS) analysis of the pair of metal wires. By weight, one wire is 45% Nickel, 50% copper, with 1% each of iron and magnesium and zinc. The other wire is 88% nickel, 8% chromium, and +1% iron with lower amounts of magnesium, vanadium and zinc. He said "I'll stand by one of them being Constantan, but I have to revise the
[other] to an ID of "Chromel."" I"ve not had the braids analyzed.
Here's some Web links which discuss spectroscopy and materials: a SIS Web page for constantan at $3.85/foot and
on this SIS Web page for chromel at $3.30/foot. Constantan resistance changes little with temperature, hence the name; .00130 ohms/cm (theory) at the size I have. Chromel is used for the plus wire for thermocouples; .00200 ohms/cm at the size I have. Sites such as this one refer to constantan-chromel as a type E thermocouple, with high output over other thermocouple-pairs.
A scientist has reviewed my description and noted: "Based on the description, what you
have is almost surely Type E, Also called Chromel-Constantan. It has the
highest EMF of the standard types and is good up to about 850C. Omega has tables for it, and some readouts are calibrated for this type, especially the modern ones which allow you to select the TC type from a menu."
Label on the steel barrel containing the wire, clearly the original container, says "8/27/86 1400' of P.S.C. type 39,
602-4-20SL-5-1 two twisted pair HV Thermocouple cable" and "PSC division, M W Riedel and Co, 300 CYPRESS AVE, Alhambra CA (213) 283-7694". PSC could be Pyro Service Company. In 2008, 300 Cypress Ave. is a location for several distributors of electronics. For information on thermocouple wire, look at this Omega Web site.
Information from a document from the lab where this wire was obtained, includes the following: "Thermocouple wire XC-E-20 (chromel-constantan covered with Nextel-312 fiberous insulation and braided Inconel jacket" for surface pumping panels, covers...internal vacuum vessel wall." I can't guarantee this description matches the wire I have, but the details correspond. Some manufacturers of thermocouple wire use "20SL" to refer to 20-gauge "special limits of error" wire, a higher grade of wire.
Pickett N803-T log log Speed Rule Dual Base, in black leather case.
Excellent condition, except name written in ink on inside top flap of case.
Post, Versalog Slide Rule Instruction book copyright 1951, 1962, 1963.
hardcover, excellent condition.
K&E Log Log Duplex Decitrig Slide Rule book copy right 1943, 45, 47.
Softcover, excellent condition except name in ink on front cover, upper right.
All references are with customer's permission; customers are identified by
initials and state or country. I also have sales in the
Apple Mac world and some references from my S-100 customers.
T.C. of NH said: "The [Tektronix oscilloscope] works great and all controls are solid and responsive--you
did a nice job with packing. Thanks for a great deal.."
D. G. of CA said: "I have purchased a variety of vintage items from Mr Johnson and I find
him straightforward and fair in his dealings. He is a good communicator
and each purchase has been smooth and as expected. He has my highest
recommendation."
G. M. of CANADA says "IP-32 Power supply received in good order. I replaced the knobs & pilot light bulb, and generally cleaned it up inside & out. It works very well. Thanks. I bought a
complete set of new or NOS tubes for the power supply (all NOS with the exception of the 6L6's,
NOS 6L6's are very expensive) but the originals are in excellent condition.
The power supply is currently is use, testing a 6SL7 audio preamplifier. "
T. D. from MI says "Hi Herb, The [Heath IP-21] power supply arrived safe.
Nice condition. I appreciate the nice deal.The PS is a welcome addition to the shop!
Thanks again".
J. W. from WI wrote: "Thank you Mr. Johnson. We have received the [DC1000 blank] tapes and are back up
running. I tried one tonight and it worked so think our old tapes must have just worn out."
Copyright © 2011 Herb JohnsonRF amplifiers, radios
T-711-J RF tuner 55-260MHz
I-711-H IF plugin #1 1MHz
I-711-G IF plubin #2 750kHz
D-711-C AM/FM demodulator switchable 150, 250, 7500, 1500kHz bandwidth
These units were made around 1970. Seems to receive FM/aircraft stations with a simple wire antenna, but I need to connect a serious antenna to check its performance. Runs on 110V AC 60Hz of course. All transistor, not tubes, I'm told it was one of the first for that company.
plug-in telemetry receiver, solid-state
105-2300MHz RF 10kHz-3.3MHz IF solid state. Plug ins
for one tuning plug-in, two IF filters, one demodulator,
and one SDU. triple conversion, 30MHz, 4.3MHz,
455kHz IFs. rack mount 7" high. Extremely linear AGC response. Video bandwidth
capable. deviation range meter. Main reciever has 30MHz IF, followed by plug in IF.
Tuned by VFO or crystal or AFC. Up to 6MHZ bandwidth.
Tuners: T-711-A 105-155MHz, T-711-B 215-320, T-711-C 285-410, T-711-E 370-408, T-711-F 1435-1540, T-711-H 2200-2300, T-711-J 65-260MHz.
IF: I-711-A, I-711-B, I-711-C, I-711-D, I-711-E, I-711-F, I-711-G, I-711-H, I-711-I, I-711-J. Bandwidths from 10KC for -A to 3.3MHz for -J
AM/FM Demodulators: D-711-A w/ 10, 30, 50kHz, D-711-B w/50 to 750kHz, D-711-C w/500-1500kHz bandwidth.
Phase-locked FM demodulator; L-711-A, L-711-B, or phi-711-A & phi-711-B demodulators long and short loop
other plugins (SDU's): S-711-A spectrum analyzer, P-711-R predetection record, P-711-P playback, S-711-O monitor oscilloscope
data media, tapes, drives
Maxell HS-8/112, rated capacity 2.5GB/5.0GB7 still wrapped and in a box. OR,

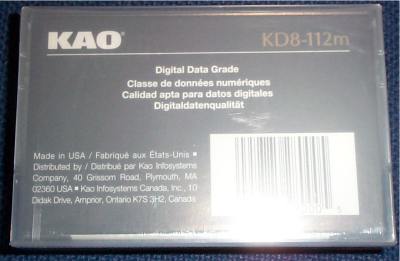

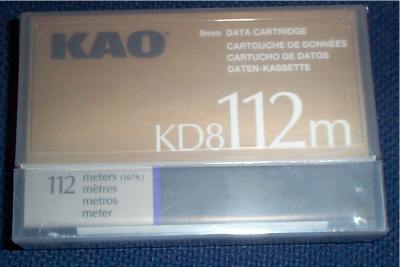

KAO 8mm data cartridges #28000, 112m length.
Unused, sealed 240 tapes, most still in their factory boxes of 10 per box. Here and here are images of each tape. These are data grade tapes.
price: $6 per box of ten tapes, plus shipping.
more tapes and cartridges
Fuses
![[amptrap fuse]](l_fuse.jpg)
Amp-trap semiconductor fuses, 100 amps
High power fuses
About 12 high-power fuses by GE. THOUSANDS OF AMPS, THOUSANDS OF VOLTS.
Constructed of silver ribbon (one troy ounce each) in a sand matrix. Weigh about
10 pounds each or so. Old but apparently unused, one is dated 1983. Typical model
number and spec: 218A4293P12RB, 4.8KV, 80KA Conversation piece,
I suppose, but they also have an ounce of pure silver in them, so that makes them
worth a few tens of dollars each. The sand is very high grade also.
laptop power supplies
Items of various sorts, take a look!

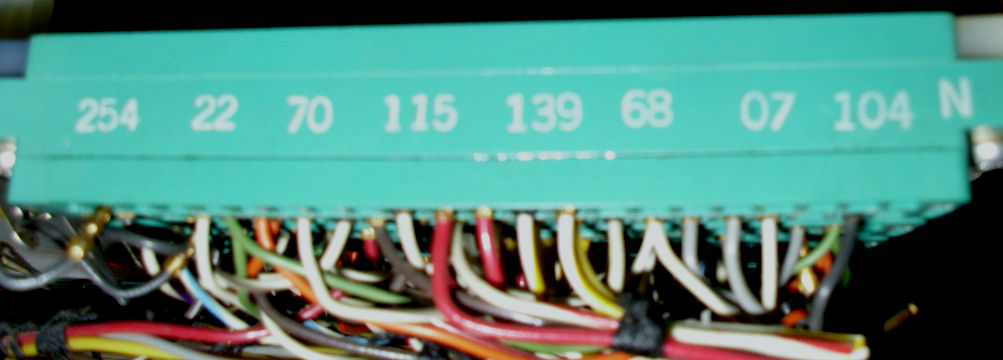

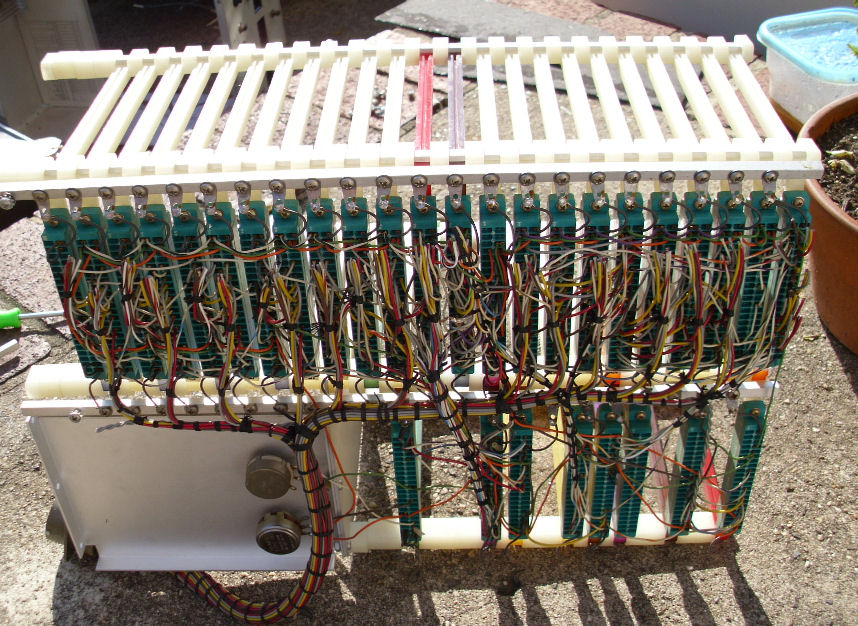

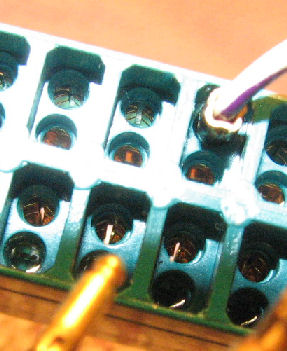

removed dozens of 44-pin board edge connectors on rack
Cinch 254-22-70-115-139-68-07-104-N, 4" ear-ear, .156" pitch

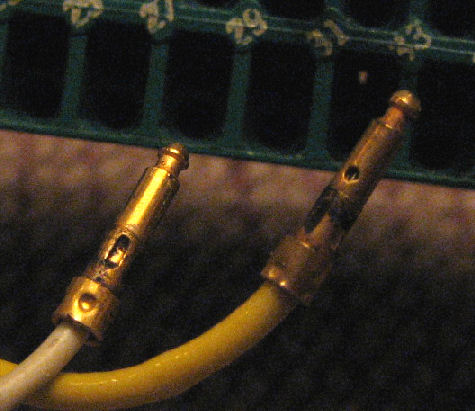

connectors have *removable wire pins*, which plug into pairs of jacks per board pin
rack is disassemble-able
So, where can I get more of these pins? ;)
bulk wire and related
other wire
Slide rule related items.
References
B.A. from CA said: "We received the [ADM-3A] LSI terminal friday afternoon
and installed it first thing this AM(monday). Everything works fine."
B.C. from CA said: "Hi Herb, The HP manual arrived OK. Thanks again.
I'm thrilled to get the manual. I'd have never figured out how to use
this thing without it."
J. W. from GA said: "Hi Herb, [the Indy R4000 and R5000] package came in
good condition today! thanks for the great deal!"
S.C. from MI said: "The [AXP Alpha 150 system] came in the mail today, and I
must say,
I'm as impressed this time as I was the last time I purchased something from
you! The fast shipping was awesome and the system was in beautiful condition!
As always, a pleasure doing business with you. Thanks very much!"
Herb Johnson
New Jersey, USA
Check this link to email @ me
