Most recent revision of this page Mar 12 2026(c) Herb Johnson. This page will accumulate information about the Netronics Elf II computer "EPROM board". It's a 2716 EPROM programmer for the Netronics Elf II bus.
Check the ELF II I own at this linked Web page for more
Netronics Elf II and board info and links. - Herb

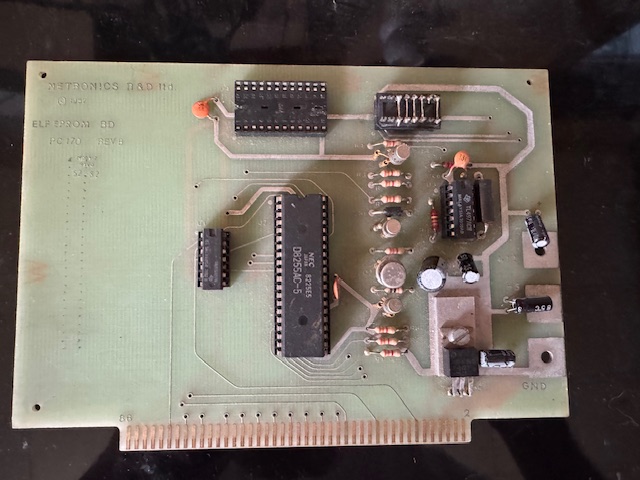

Ronnie Searle sent me an email March 20 2026 with "pictures of my Elf II EProm programmer board. It's originally from Netronics. I can't find any information on it." he says. Ronnie kept an Elf II with cards but "somehow my documentation got lost in the 48 years that I had this thing. I had to download it all [recently to work on restoring it]".
When asked about the chips he said: "There's a TL490ACN chip, a D8255AC-5, I can't make out the other chip. The numbers are rubbing off from age. 4 transistors that I can't make out. Possibly a 7805 regulator that numbers are wore off. Some resistors and 6 capacitors. five are electrolytics. And an ic socket and a DIP jumper. Other than that, that's all to the board."

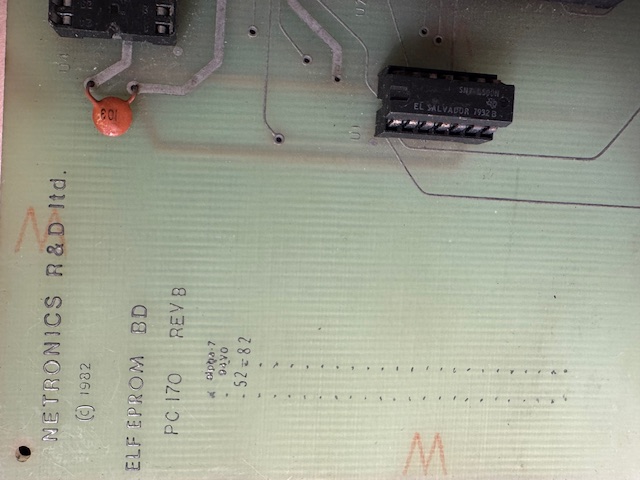

Detail of text etched in copper says: "Netronics R&D ltd (c) 1982 - EPROM BD - PC 170 Rev B - alpha-7 94V0 S2 - 82". So Netronics identifies it as a "EPROM BD" maybe with some circuit board designation "PC 170 Rev B". I guess the PC board maker added "alpha-7 94V0 S2 - 82". The 82 is likely a year.
There's a TI TL497AIN chip on the board, or maybe a 494 or 490 as Ronnie says. It's likely in a circuit which generates the higher-voltage and pulses needed for EPROM programming. I've asked for details to identify that and other chips.
The VCFed museum has an Elf II with notes it has a card and docs for "eprom programmer 2716". I'll see if I can obtain a copy of those docs.
George Musser took some photos of his Elf II "and an EPROM programmer> and they appear on the cosmacelf.com Web site. no details on the EPROM board, it's presumably one of four boards shown on the Elf II backplane.
If YOU have information, docs, photos of this "Elf II EPROM BD" please contact me. - Herb Johnson
